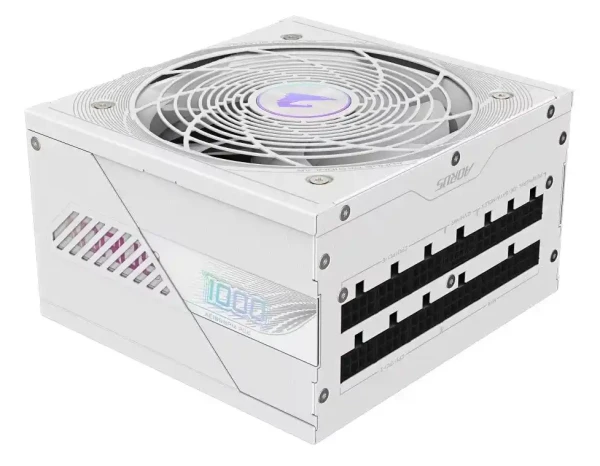

| Model | Gigabyte 1000W AORUS ELITE 80+ Platinum Modular PCIe 5.0 ATX PC napajanje |
| Verzija napajanja | AORUS Elite |
| Ukupna snaga | 1000W |
| Energetska efikasnost | 80 Plus Platinum |
| Standard | ATX V3.0 |
| AC ulaz | 100-240Vac |
| DC izlaz | Input Current 15-6.5A Input Frequency 60-50Hz |
| PFC | Aktivni |

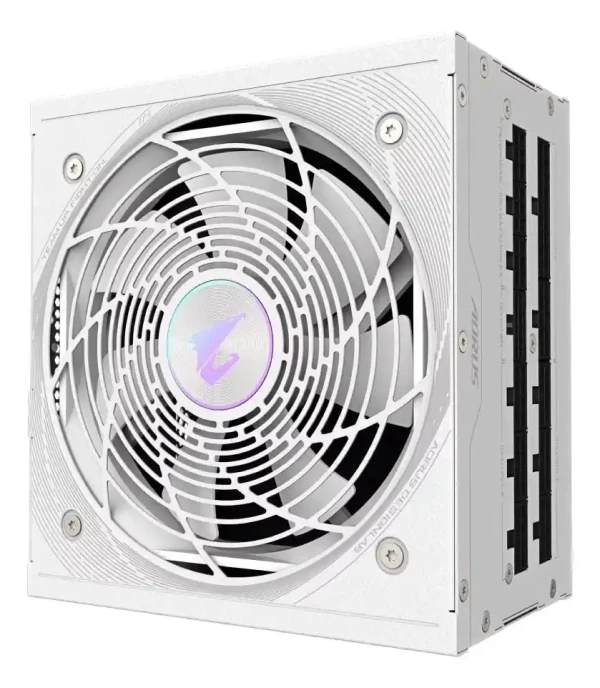

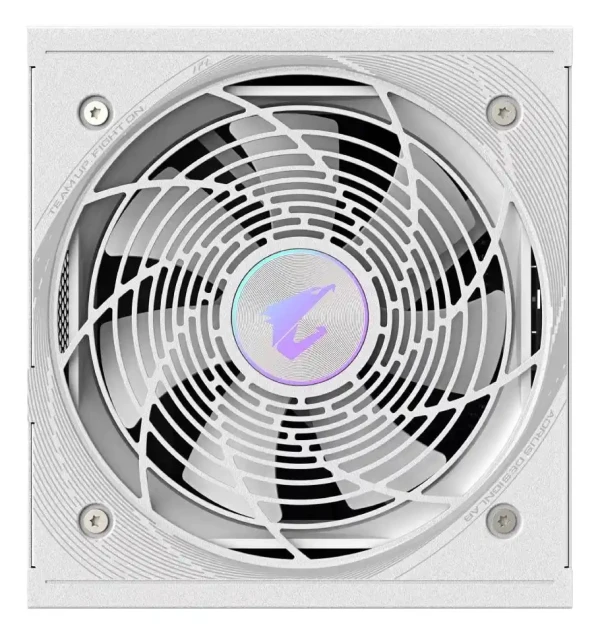

| Hlađenje | Ventilator 120mm |
| Upravljanje kablovima | Modularni |

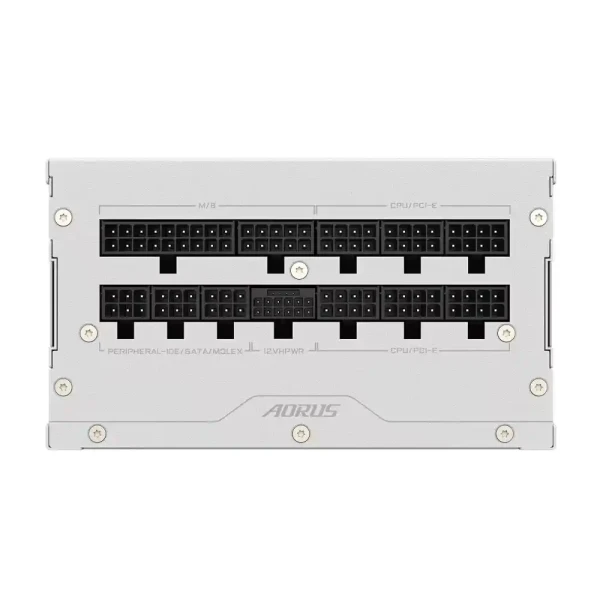

| PCI-Express konektori | 6x6+2 pina; 1 x 16pin |
| Ostali konektori | ATX/MB 20+4 Pin x 1 : 650mm 1 CPU/EPS 4+4 Pin x 2: 700mm 2 PCl-e 16 Pin x 1: 700mm 1 PCl-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm 2 SATA x 8: 600mm+150mm+150mm+150mm 2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm 1 |
| MTBF | 100.000 hours |
| Dodatne karakteristike | OVP - Over Voltage protection OPP - Over Power protection SCP - Short Circuit protection UVP - Under Voltage protection OCP - Over Current protection OTP - Over Temperature protection |
| Dimenzije | 150x140x86mm |
