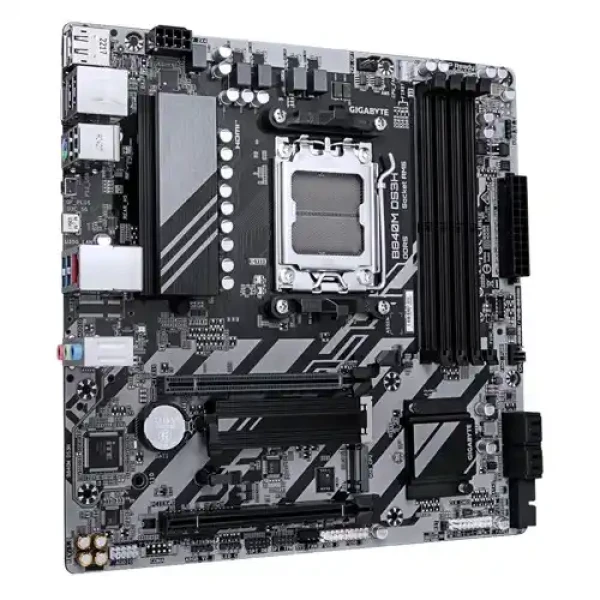

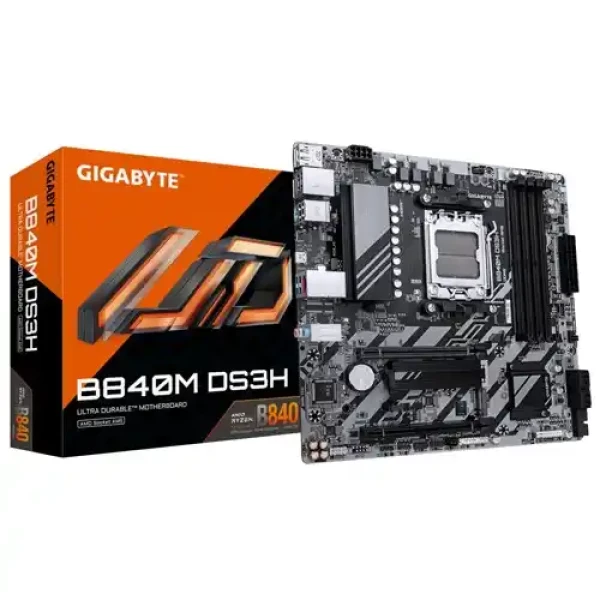

Matična ploča AM5 Gigabyte B840M DS3H DDR5 HDMIDPM.2
GIGABYTEŠifra: 33427
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
- Garancija: Zakonska saobraznost 24 meseca
Maloprodajna cena:
15.110,00 rsd.
Web Cena:
14.390,00 rsd.
Popust:
720,00 rsd.
Proizvodac cipa Gigabyte
Tip Maticna ploca
Model B840M DS3H rev. 1.0
Procesorsko ležište (socket) AMD AM5
Cipset AMD B840
Tip memorije DDR5
Memorijski slotovi 4
Maksimalna ukupna memorija 256GB
Ostale osobine Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
PCI Express x16 slot 1x PCI Express 4.0 (x16 mode), 1x PCI Express 3.0 (x4 mode)
SATA prikljucci (ukupno) 4
SATA prikljucci SATA III 6Gbps
Broj M.2 slotova 2
Podržani M.2 formati 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 2580 (podrška za PCIe 4.0 x4/x2 mod)
RAID RAID 0, RAID 1, RAID 10
Žicna mreža (LAN) 2.5GBase-T (Gigabit)
Model Realtek
Broj kanala 2/4/5.1/7.1
Model Realtek
Napomena High Definition
Broj DisplayPort prikljucaka 2
DisplayPort prikljucci 2x DisplayPort 1.4
Broj HDMI prikljucaka 1
HDMI prikljucci 1x HDMI 2.1
PS/2 1 (tastatura ili miš)
Ukupno USB prikljucaka 7
Ukupno USB-C prikljucaka 1
USB-A prikljucci 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1)
USB-C prikljucci 1x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN) 1
Audio 3x 3.5mm
Ostali prikljucci 1x Q-Flash Plus dugme
Naponski prikljucci 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB-A 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C 1 x podrška za 1 USB 5Gbps port
Audio 1x Front panel audio, 1x Front panel header
Podržane tehnologije Q-Flash Plus, Smart Backup, UEFI Bios
Format microATX
Dimenzije 244mm x 244mm
EAN 4719331868437
Garancija 3 godine
| Model | Gigabyte B840M DS3H AM5 DDR5 Micro ATX Matična ploča |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD B840 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160 144Hz |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Zvuk (Audio) | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| USB portovi | CPU: - 1 x USB Type-C port, with USB 3.2 Gen 1 support on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Operativni sistem | Windows 10; Windows 11 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
